| Operating voltage (VDC) | 4.5~18 |
| Measurement angle (°) | 10.5(DC5V) |
| Output signal | Maximum rotation 360 |
| Operating current (mA) | Digital & Analog |
| Signal range (%F.S) | 10~90 |
| Accuracy (%F.S) | ±1.5 |
| Resolution (bit) | 12 |
| Operating temperature (℃) | -40~150 |
Product Introduction

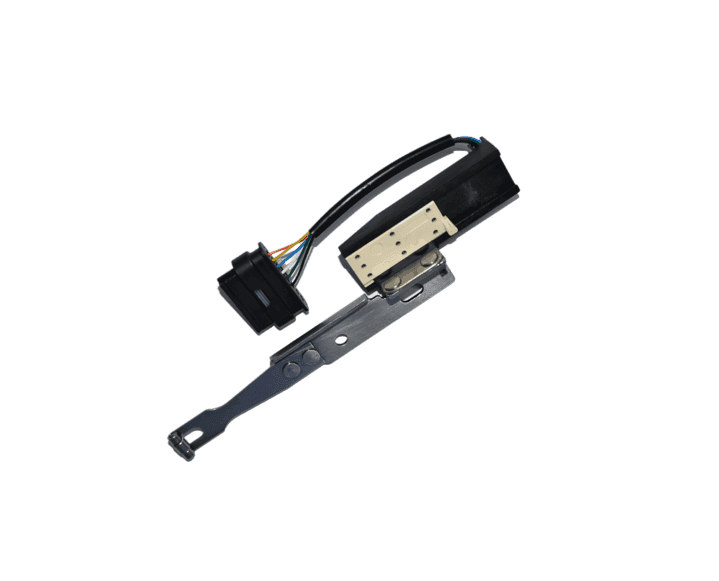

Use Hall IC and magnet to detect the position of the parking lock and the position of the gear lever P/R/N/D/L. The Hall IC is fixed on the sensor. The magnet part rotates with the transmission of the gear lever P/R/N/D/L. Different angles of rotation will correspond to different SENT outputs from the IC.
Product Outline Drawing
Product Parameters
Parameter Description |
Features
- • Using Hall IC, 360° angle can be detected • The connector is 3-terminal, and the SENT protocol outputs 12-digit angle information • Customizable specifications, such as detection angle, output information, sensor shape, etc
- Applicable: • Punch gearbox → Geely, Xiaokang, Dongfeng • Wanliyang gearbox → Roewe, MG • SAIC gearbox → Chery, Geely
